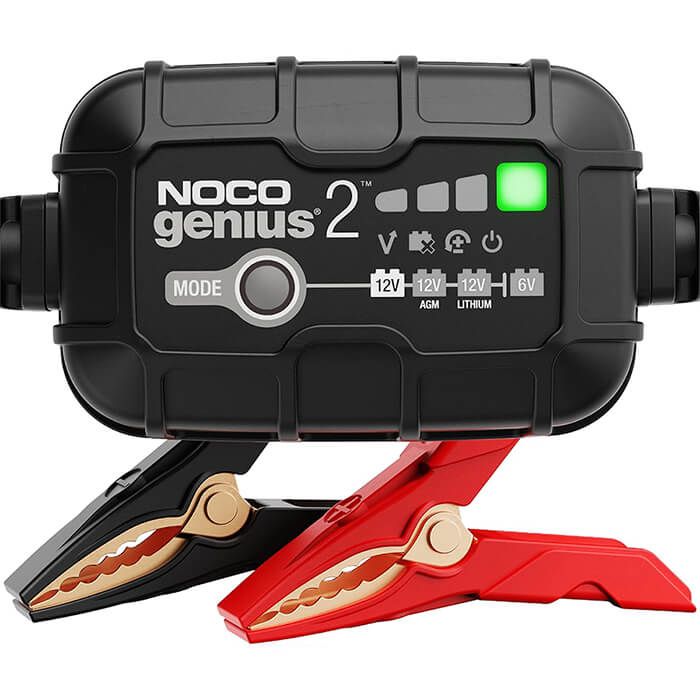

NOCO GENIUS 2

What's In The Box

• GENIUS2 Battery Charger w/ Interchangeable Connector
• Clamps w/ Integrated Eyelets (M6)
• Mounting Bracket w/ Strap
• (2) Self-Tapping Screws
• User Guide & Warranty Information

Operating Requirements

Line Voltage: 120V to 240V AC

Frequency: 50Hz to 60Hz

Operating Temperature: -4° to 104°F(-20° to 40°C)

Storage Temperature: -22° to 140°F(-30° to 60°C)

Relative Humidity: 0 to 95% Non-Condensing

Charging

Current: 2 Amps DC

Voltages:

• 6 Volts
• 12 Volts

Chemistry: Lead-Acid and Lithium

Types:

• AGM
• CA
• EFB
• Gel
• Lithium
• MF
• Wet

Capacity Range: Up to 40 Amp-Hours

Maintenance: All Battery Sizes

Power

Consumption: 30 Watts (Max)

Efficiency: 87% (120VAC / 230VAC)

Safety

Short-Circuit: Yes

Open-Circuit: Yes

Overheating: Yes

Overcharge: Yes

Spark-Proof: Yes

Reverse Polarity: Yes

Product Size

Height: 2.4in (61mm)

Width: 3.7in (94mm)

Depth: 1.69in (43mm)

Weight: 1.1lb (0.5kg)

Cable Management

DC Cable + Clamp Length: 77in (195cm)

DC Cable Size: 18 AWG AWG

DC Fuse Size: 4 Amp Mini Blade Fuse AMP MINI ® Blade Fuse

AC Cable Length: 71.7in (182cm)

AC Cable Size: 18 AWG

Oil, gas, grease, water, chemical, UV, abrasion resistant

IP Rating

IP65

Limited Warranty

3-Year Limited Warranty
